- Image Sensor: 1/3" Sony Super HAD II CCD
- Total Pixel: NTSC : 811(H)X508(V), PAL : 795(H)X596(V)
- Effective Pixel: NTSC : 768(H)X494(V), PAL : 752(H)X582(V)
- Scanning System: 2:1 Interlace
- Scanning Frequency: NTSC : 15.734kHz x 59.94Hz, PAL : 15.625kHz x 50Hz
- Synchronization: Internal
- Shutter Speed: NTSC : 1/60s~1/100,000s, PAL : 1/50s~1/100,000s
- Horizontal Resolution: 600TVL(Color) / 620TVL(B/W)
- Min. Illumination: Color : 0.1Lux, B/W : 0.01Lux, Sens up : 0.0001 Lux (F1.2 at 30 IRE)
- Video Output: VBS 1.0V p-p/75Ω

- Lens: [2.8~12mm] DC Auto Iris Lens (Option : IR Filter Change)
- Angular Field do View:H : 102°(Wide) ~ 28°(Tele), V : 73°(Wide) ~ 21°(Tele))
- Iris Control: AUTO / MANUAL

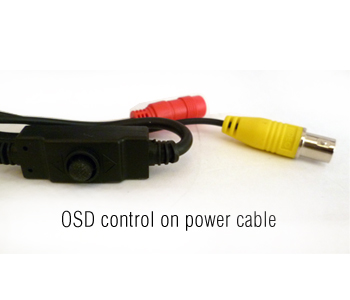

- On Screen Display: Support
- Day&Night: Color / BW / Auto Selectable
- Motion Detection: ON / OFF (4 Zone ISO Control/ Output OSD)
- Privacy Masking:On / Off (8 Areas)
- White Balance: ATW / MANUAL / AWC -> PUSH
- DNR: 3D-DNR : OFF / AUTO/ LOW / MIDDLE / HIGH
- WDR: DWDR
- Sens-Up: OFF/ AUTO/ FIXED (Selectable X2~X1024)
- Auto Gain Control:Off / Low / Middle / High Selectable
- Shutter Speed:NTSC : 1/60s~1/100,000s, PAL : 1/50s~1/100,000s
- Sharpness: Level Adjustable
- Heater: Option

- Power:MAX. DC12V 460mA [5.5W] (With Heater : DC12V 670mA [8W]))
- Power Supply: DC12V 1.0A

- Dimension: 120mm(W) x 93mm(H) x 85mm(D)
- Weight: 1000g
- IR LED: 40EA
- Ingress Protection: IP68
- Certifications: CE, FCC

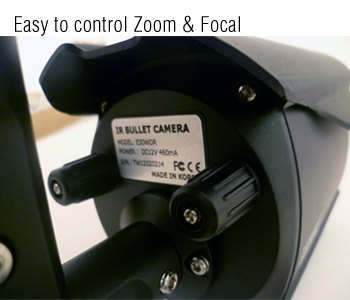

- Outside Control: Zoom, Focus, OSD
